For over 18 years Action Transportation Inc. has been an industry leader in the overdimensional transportation industry. From oversized farm equipment to CNC Machines to large pieces of artwork Action Transportation Inc. as aided in the transportation of these and numerous other oversized shipments.
From planning to scheduling and pick-up to delivery, our main goals are customer satisfaction and safe, efficient freight delivery. Let Action Transportation Inc. handle your overdimensional shipping needs – request a quote or call the number above today. When a shipment exceeds these defined limitations, it is referred to as an “Oversize Load”. These loads may also be called overweight loads, oversize freight or heavy haul. Shipping loads that fall into this class require specialized logistics.
Action Transportation Inc. use equipment such as lowboys, drop decks, and stretch trailers. Our freight quote will instantly compare rates from many highly rated US carriers. Some carriers offer extra services like white glove or lift gates to better assist the transport of your shipment. You could spend your time researching which carriers are available to service your area and call for pricing. Or you could save time and money using our services that will handle all the research work for you resulting in a huge time savings.
Contact us today to get your free overdimensional shipping quote.
Do you know the difference between a Flat-bed and a step deck? Dry van versus a Conestoga? Lowboy versus a gooseneck? Even if you’re not sure what equipment you might need to move your important freight shipment here’s a quick primer on the different trucking equipment types you might encounter.
Each Flat Bed trucking is different from the other types so the information that you will be seeing here should be used and treated as your general guideline. Typically, most of the platform trailers mentioned here are capable of handling freights that may even exceed the dimensions and weights for a required permit in a particular state and even premium charges that are needed to be obtained prior to your specific type of shipment.
Flatbeds are extremely popular and are widely used because they exude a great sense of versatility. Generally, a flatbed is used to load freights on its tip, sides, and rear. With these capabilities, flatbeds have truly become the primary and leading assets of the trucking industry.
This kind of trailer has the capability to carry a maximum legal freight dimension and weight which are as follows:
Flatbed Trailers Maximum freight weight of 48,000 pounds. Flatbed Trailers Maximum freight dimensions: Maximum Flatbed Trailer Length- 48 ft – 53 ft Maximum Flatbed Trailer Width- 8.5 ft Maximum Legal Freight Height- 8.5 ft
Step Deck – Stepdeck Trailers are otherwise known as drop deck types and they are in fact a version of the flatbed trailer design that mainly consists of a bottom and top deck.
These trailers are specifically designed to carry and haul freights that cannot be carried or transported on a standard type of flatbed, which is usually due to height restrictions.
The maximum legal dimensions and weight for a Stepdeck – Step Deck Trailers are as follows: Stepdecks Maximum freight weight is 48,000 pounds. Stepdecks Maximum freight dimensions: Maximum Stepdeck Trailer Length- 48 ft – 53 ft Maximum Stepdeck Trailer Width- 8.5 ft Maximum Legal Freight Height- 10 ft
Hot shots are extremely popular and are widely used because they exude a great sense of versatility. Generally, a Hotshot is used to load freights on its tip, sides, and rear.
With these capabilities, Hotshot have truly become the primary and leading assets of the trucking industry.
This kind of trailer has the capability to carry a maximum legal freight dimension and weight which are as follows: Flatbed Trailers Maximum freight weight of 12,000 - 20,000 pounds. Flatbed Trailers Maximum freight dimensions: Maximum Flatbed Trailer Length- 15 ft – 40 ft Maximum Flatbed Trailer Width- 8.5 ft Maximum Legal Freight Height- 10.5 ft
53ft Box Van
Dry Van trailers are generally enclosed and are commonly used to carry and protect the freights from the harmful elements of the weather or the roads.
Freights can be loaded on the rear and are commonly loaded using a loading dock.
It is similar to a curtain van and it can be loaded from its side too. Legal weight and dimensions are: Dry Van Maximum freight weight is 42,000 lbs to 45,000 lbs. Dry Van Maximum freight dimensions: Maximum Dry Vans Length- 48 ft – 53 ft Maximum Dry Vans Width- 8.2 ft Maximum Dry Vans Height- 8 ft
53ft Refrigerator Van
Refrigerated trailer is a temperature-controlled type of trailer. It is generally used for transporting chilled or frozen products. The temperature inside this trailer can be controlled whatever the outside weather is.
Freight Rate Central has the refrigerated trailer you need, regardless of the size of your load or the type of cargo you need shipped. Legal weight and dimensions are:
Refrigerated Trailers Max freight weight is 42,000 to 45,000 lbs. Refrigerated Trailers Maximum freight dimension: Maximum Refrigerated Trailers Length- 48 ft – 53 ft Maximum Refrigerated Trailers Width- 8.2 ft Maximum Refrigerated Trailers Height- 8 ft
The power only trailer is a special type that is generally used in towing various types of trailers, and it usually comes with a fifth wheel hitch, pintle hitch, and ball and hitch.
Only four axles are allowed when the freight is overweight.
Maximum Power Only freight weight and dimensions depend on the type of trailer that is being towed / hauled (state requirements should be strictly followed).
Conestoga trailers come with a rolling tarp system that is used to cover and uncover the trailer and gives protection to the freight.
Conestoga Trailers Max freight weight is 42,000 lbs to 45,000 lbs. Conestoga Trailers Maximum freight dimensions: Maximum Dry Vans Length- 48 ft – 53 ft Maximum Dry Vans Width- 8.2 ft Maximum Dry Vans Height- 8 ft
RGN or Removable Gooseneck Trailers are excellent for carrying tall and long freights. It comes with a detachable front, allowing the trailer to be dropped on the ground in order to create a ramp. It is capable of hauling and carrying freights weighing up to 150,000 pounds. It can go from 3 axles up to 20 plus axles for heavier shipments.
RGN or Removable Gooseneck Trailers are more specialized so they render a more expensive usage. Legal weight and dimensions of a RGN or Removable Gooseneck Trailers are as follows:
RGN’s Maximum freight weight is 42,000 pounds. Removable Gooseneck – RGN Maximum freight dimensions: Maximum Removable Gooseneck – RGN Well Length- Main Deck 29 ft Maximum Removable Gooseneck – RGN Well Width- 8.5 ft Maximum Removable Gooseneck – RGN Legal Freight Height- 11.6 ft

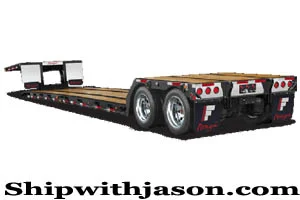

A Stretch Double-Drop Trailer is generally used for carrying oversized shipments. Its lower deck allows you to load products that can be as tall as 10 feet. It also comes with a so-called “well,” a longer piece at the trailer’s back deck and middle portion.
The well usually measures from 25 feet to 29 feet. Legal weight and dimensions are as follows:
Stretch Double Drops Max freight weight is 45,000 pounds. Stretch Double Drops Maximum freight dimensions: Max Stretch Double Drop Trailer Length- Main Deck 29 ft – 65 ft Max Stretch Double Drop Trailer Width- 8.5 ft Max Stretch Double Drop Legal Freight Height- 11.6 ft
